The Ultimate BMW Wallbox Guide: Setup, Troubleshooting, and Pro Tips for Northern Virginia Owners
Owning a BMW electric vehicle is much easier when charging is handled at home. A properly installed BMW Wallbox can provide dependable Level 2 charging overnight, whether you live in Ashburn, Leesburg, Aldie, Sterling, South Riding, Fairfax, Chantilly, Centreville, Gainesville, Haymarket, Manassas, or Warrenton.
The important point is that the wallbox itself is only one part of the system. The charger, vehicle, electrical panel, wiring, circuit protection, permitting, and installation location must all work together. This guide explains what Northern Virginia BMW owners should know before installing or troubleshooting a BMW Wallbox.
What Is a BMW Wallbox?
A BMW Wallbox is a permanently mounted electric vehicle supply equipment unit, commonly called EVSE. It delivers 240-volt AC power to the BMW’s onboard charger, which converts that electricity into energy stored in the vehicle battery.
Depending on the model and generation, a BMW Wallbox may provide:
- Higher charging power than a standard 120-volt outlet
- Adjustable charging amperage
- Hardwired electrical connection
- Vehicle and charging-status indicators
- Wi-Fi, Ethernet, or app connectivity
- Load management or scheduled charging features
- Outdoor-rated enclosure protection
- Compatibility with BMW and MINI electric or plug-in hybrid vehicles
BMW EV examples include the i4, i5, i7, iX, and other BMW Group battery-electric and plug-in hybrid models. Exact compatibility depends on the vehicle year, charging inlet, software, market, and wallbox generation. Some BMW Group models are sold with different connectors or specifications outside the United States.
Always confirm the vehicle’s charging connector and the wallbox model number before installation.
BMW Wallbox Generations and Model Differences
BMW Wallbox names can be confusing because the product family has changed over time and regional versions are not always electrically interchangeable.
Legacy BMW i Wallbox Models
Older products may be labeled BMW i Wallbox, BMW i Wallbox Plus, or BMW i Wallbox Pro. These units were commonly designed around Type 2 charging connectors in European and other international markets.
They may still provide reliable AC charging when properly installed, but an older imported wallbox may not be appropriate for a Northern Virginia home. Electrical phase, voltage, connector, certification, firmware, and utility requirements all matter.
BMW Wallbox and Wallbox Plus
BMW’s current US documentation includes Wallbox products designed for the North American electrical system. The connector may be NACS on newer US-market versions, while many BMW vehicles and older wallboxes use J1772.
The BMW Wallbox Plus documentation describes an adjustable current range that may extend from approximately 6 amps to 64 amps, depending on the product version. That does not mean every BMW can accept 64 amps. The vehicle’s onboard AC charger sets the actual charging limit.
BMW Wallbox Professional
The BMW Wallbox Professional is associated with advanced energy management and, in selected markets and compatible vehicles, bidirectional charging. Features such as vehicle-to-home or vehicle-to-grid operation are not automatically available simply because a wallbox carries the Professional name.
Bidirectional charging depends on:
- The specific vehicle
- Vehicle software
- Wallbox hardware and firmware
- Local utility and interconnection requirements
- Market availability
- Compatible energy-management equipment
Do not install an imported three-phase BMW wallbox in Northern Virginia without having a qualified electrician verify that it is listed, compatible with the local 120/240-volt split-phase system, and acceptable to the local authority having jurisdiction.
For official product details, consult the BMW Wallbox Plus instructions manual and BMW’s home charging information.

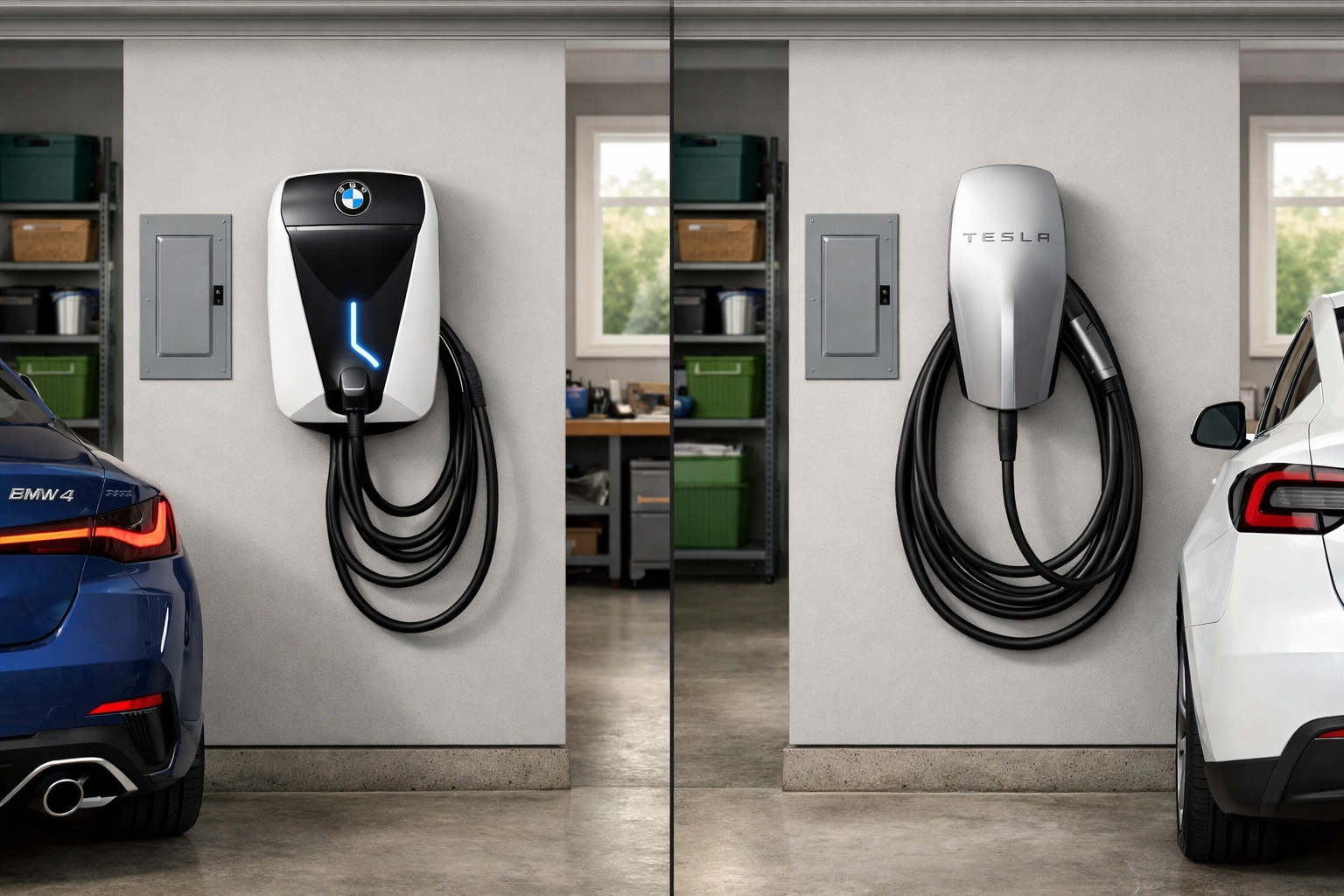

BMW Wallbox vs. Universal Charger vs. NEMA 14-50
Northern Virginia homeowners typically consider three home charging options.
BMW Wallbox
A BMW-branded wallbox makes sense when you want:
- A permanent, clean installation
- BMW-specific integration where supported
- A fixed charging cable
- Adjustable charging power
- A finished appearance in the garage or on an exterior wall
Universal J1772 or NACS Charger
A universal charger may be a better choice if your household has more than one EV brand or you may purchase a different EV in the future. Universal models are available with J1772 or NACS connectors.
Choose the connector based on the vehicles you actually own. An adapter may be approved for some vehicle and charger combinations, but compatibility should be confirmed rather than assumed.
NEMA 14-50 Outlet
A NEMA 14-50 outlet can support a portable Level 2 charger and offers flexibility for homeowners who want to take the charging equipment with them. However, it adds another high-current plug and receptacle connection.
EV charging is a continuous load that can run for several hours. For that reason, Auto Charge Pros generally recommends a hardwired EV charger installation whenever practical, particularly for higher-powered residential charging.
A receptacle-based setup can still be appropriate when installed with the correct wiring, breaker, GFCI protection, box, cover, and industrial-grade receptacle.
Electrical Requirements for a BMW Wallbox
A BMW Wallbox normally requires a dedicated 240-volt branch circuit. The charger should not share that circuit with a dryer, water heater, air conditioner, receptacle, or other equipment.
The installation typically involves:
- A two-pole circuit breaker
- Properly sized copper conductors
- An equipment grounding conductor
- Manufacturer-required ground-fault protection
- A dedicated circuit from the panel
- Correct terminal torque
- A code-compliant mounting method
- Appropriate conduit or wiring method for the location
- A circuit label at the electrical panel
The 125% Continuous-Load Rule
Under the National Electrical Code, EV charging is generally treated as a continuous load. The branch circuit must be sized for at least 125% of the charger’s maximum continuous current.
Examples include:
- 32-amp charging requires a circuit rated for at least 40 amps
- 40-amp charging requires a circuit rated for at least 50 amps
- 48-amp charging requires a circuit rated for at least 60 amps
The breaker, conductor size, equipment rating, and installation method must all be selected together. A larger breaker cannot simply be installed on existing wire.
Panel Capacity and Load Calculation
Empty spaces in a panel do not prove that the service has capacity for a BMW Wallbox. An electrician must evaluate the home’s calculated load, service rating, existing breakers, and large appliances.
The load calculation should account for equipment such as:
- Electric ranges and ovens
- Heat pumps and electric resistance heat
- Central air conditioning
- Electric water heaters
- Dryers
- Well pumps
- Hot tubs
- Existing EV chargers
- Detached-building feeders
A 200-amp service may support a wallbox without modification, but that is not guaranteed. A 100-amp or 125-amp service may need a lower charging setting, load management, a subpanel solution, or a service upgrade.
Learn more about the process in Auto Charge Pros’ EV charger load calculation checklist.
Garage, Exterior, and Detached-Garage Installations
Attached Garage
An attached garage is usually the simplest location. The charger can be installed near the vehicle’s charging port while keeping the cable away from walking paths, garage doors, and vehicle tires.
Concealed wiring may be possible when the panel and charger are on suitable interior walls. If drywall must be opened, the installation plan should address patching and finishing before work begins.
Exterior Wall or Driveway
Exterior installations require equipment listed for outdoor use and a wiring method suitable for weather exposure. The mounting surface must be secure, and the cable should reach the vehicle without lying across a walkway.
The charger should also be protected from impact, standing water, snow accumulation, and accidental vehicle contact.
Detached Garage
A detached garage may require a feeder from the house, underground conduit, trenching, a new subpanel, or a load calculation for the detached structure. The installation can take longer than a standard garage project, particularly when concrete, landscaping, or long underground runs are involved.
Permits and Inspections in Northern Virginia
Auto Charge Pros manages permits and inspection coordination for qualifying installations. Requirements vary by jurisdiction.
- Loudoun County: A new or modified electrical circuit for a Level 2 charger generally requires an electrical permit and inspection. This applies to homes in Ashburn, Leesburg, Aldie, Sterling, and South Riding. See the Loudoun electrical permit application.
- Fairfax County: A new EV charging circuit, new 240-volt receptacle, or hardwired charger generally requires a residential electrical permit through Land Development Services. Fairfax County identifies this as an ELER trade permit. Review the Fairfax County EV charging guidance.
- Prince William County: The county requires a permit when an EV charging circuit is added, extended, or hardwired. Its guidance may also require charger documentation and a residential load calculation for systems over 20 amps. See the Prince William County residential EV charging requirements.
- Fauquier County: A new 240-volt circuit or hardwired charger is generally handled through the county’s residential electrical trade permit process. Review the Fauquier County residential trades information.
A final inspection confirms that the installation matches the approved work, uses appropriate wiring, has correct protection, and operates safely.
Setup and Commissioning
After the physical installation, commissioning should include:
- Verifying the breaker and charger are energized.

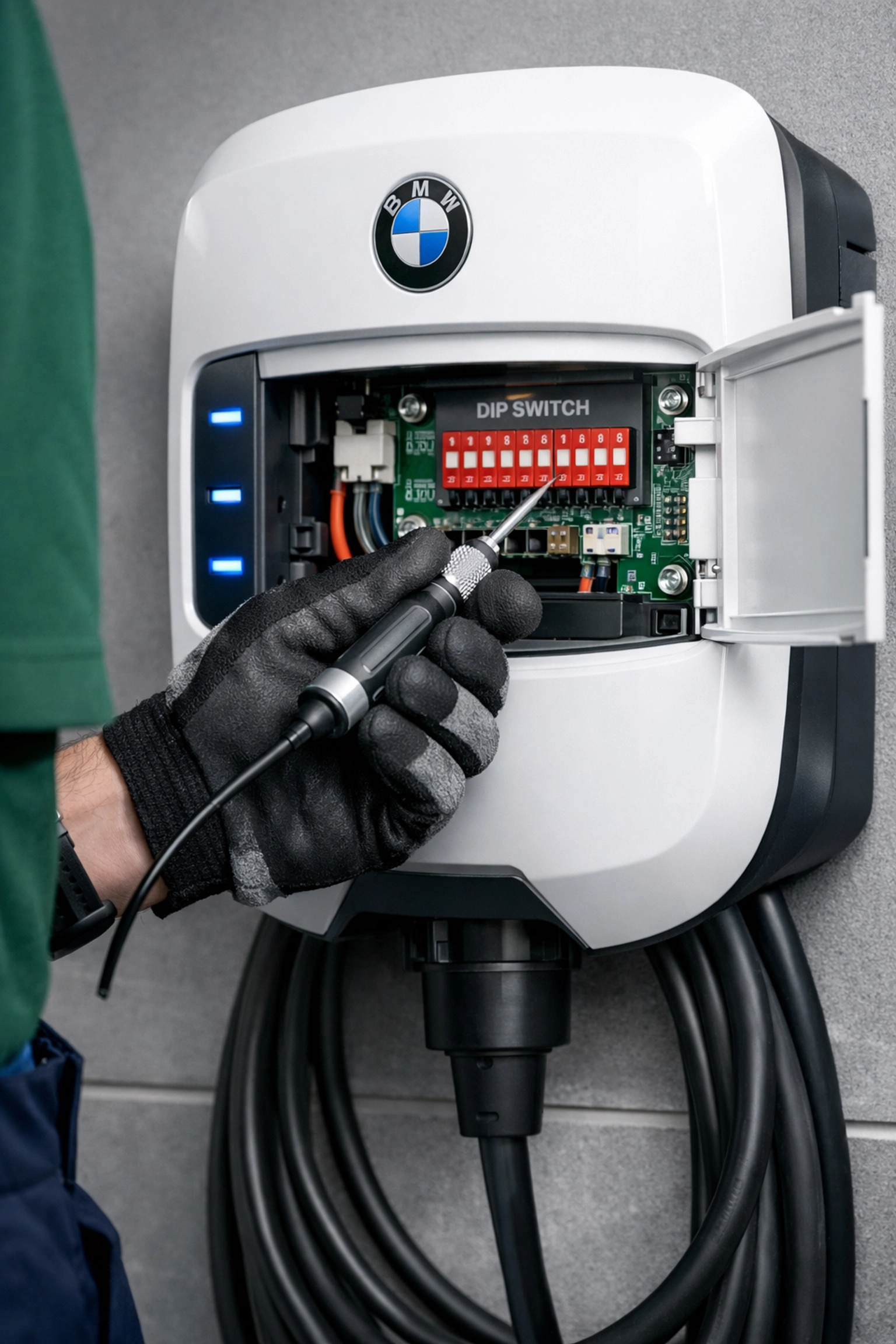

- Setting the wallbox maximum current to match the circuit.
- Connecting Wi-Fi or Ethernet if the model supports it.
- Pairing the appropriate BMW, wallbox, or energy-management app.
- Confirming the vehicle recognizes the charger.
- Starting a test charging session.
- Checking for error messages or abnormal heat.
- Labeling the circuit and providing basic operating instructions.
The BMW Wallbox app, My BMW App, and connectivity features vary by generation. A charger may continue to charge normally even if Wi-Fi is unavailable, but scheduled charging or remote monitoring may not work until connectivity is restored.
BMW Wallbox Troubleshooting
Charger Will Not Power On
Check whether the dedicated breaker has tripped. If it trips again immediately, leave it off and contact an electrician. Do not repeatedly reset a breaker that will not hold.
Fault Light or Error Indicator
Record the indicator color or flash pattern and consult the correct BMW manual. Some faults relate to ground detection, temperature, voltage, internal electronics, or vehicle communication.
Do not remove the wallbox cover unless you are qualified and authorized to do so.
Vehicle Is Not Charging
Confirm that:
- The connector is fully inserted.
- The vehicle is unlocked if required.
- Charging is not delayed by a BMW schedule.
- The vehicle battery is not already at its target limit.
- The wallbox is not paused through an app.
- The charger and vehicle connector are clean and dry.
If another vehicle charges normally, the issue may be vehicle-specific.
Connectivity Problems
Move the router closer if possible, verify the correct Wi-Fi band and password, and restart the network equipment. Some wallboxes require a 2.4 GHz network or have limited compatibility with mesh settings.
Overheating
Stop charging if the connector, cable, receptacle, or wallbox becomes unusually hot, smells burned, shows discoloration, or repeatedly reduces output. Overheating can indicate a loose termination, damaged receptacle, undersized wiring, excessive ambient temperature, or equipment failure.
Maintenance and Safety Tips
- Keep the cable off the floor when not in use.
- Do not use extension cords or homemade adapters.
- Inspect the connector and cable periodically.
- Keep snow, mulch, water, and debris away from outdoor equipment.
- Avoid driving over the cable.
- Do not use a damaged receptacle.
- Keep the charger’s firmware current when practical.
- Have recurring breaker trips or heat investigated promptly.
- Retain the permit and inspection records.
- Recheck capacity before adding a second EV charger.
FAQ
Does every BMW need a BMW-branded wallbox?
No. A compatible, listed J1772 or NACS charger can charge a BMW EV. BMW branding may provide preferred integration, but electrical and vehicle compatibility are the deciding factors.
Is hardwired better than a NEMA 14-50 outlet?
For higher-powered daily charging, hardwired installation generally removes the receptacle as a failure point and provides a cleaner permanent setup. A properly installed NEMA 14-50 can still be suitable for some homeowners.
Will I need a panel upgrade?
Not necessarily. A load calculation may show that your existing service can support the charger, especially if the charging current is configured below the maximum. Load management or a lower amperage setting may be enough in some homes.
How long does installation take?
A straightforward attached-garage installation may take several hours once the permit and equipment are ready. Long wire runs, concealed wiring, detached garages, trenching, panel modifications, and service upgrades can extend the schedule.
Can I install a BMW Wallbox outdoors?
Some BMW Wallbox models are rated for outdoor installation. The exact enclosure rating, mounting instructions, cable routing, and local code requirements must be verified for the specific unit.
Does Auto Charge Pros handle permits?
Yes. Auto Charge Pros provides full-service EV charger installation in Northern Virginia, including electrical planning, load calculations, permit coordination, inspection scheduling, clean workmanship, and cleanup.
