Why Concealed Wiring is the Key to a Clean, Safe, and Modern EV Charger Install
An EV charger can be one of the most useful upgrades in a modern home. It can also look like an afterthought if the wiring is routed carelessly.
The wiring method often determines whether a charger appears factory-installed or simply bolted onto the nearest wall. For homeowners investing in a Level 2 home charging station, the difference matters. A properly planned installation should provide reliable charging, protect the electrical system, and fit naturally into the garage or exterior space.
At Auto Charge Pros, concealed wiring is part of our clean-workmanship standard whenever the home and installation conditions make it practical.
What Concealed EV Charger Wiring Means
Concealed wiring means the dedicated EV charger circuit is routed inside finished walls, ceilings, attic spaces, crawlspaces, or other protected areas instead of being run visibly across the wall surface.
A well-planned concealed installation typically includes:
- Electrical conductors routed inside wall cavities where permitted
- Clean entry and exit points behind the charger and electrical panel
- No exposed cable crossing the garage wall
- No unnecessary surface raceway or conduit
- Proper protection where wiring passes through framing
- A dedicated breaker and circuit sized for the charger
- Minimal access openings when finished walls must be entered
Concealed wiring does not mean hiding unsafe work. The circuit still needs to be accessible where required, properly supported, protected from damage, and installed according to the National Electrical Code, manufacturer instructions, and local permit requirements.
For a higher-powered residential charger, Auto Charge Pros generally recommends a hardwired connection whenever practical. Hardwiring provides a permanent connection with fewer plug-and-receptacle connection points. A NEMA 14-50 outlet may be appropriate for certain vehicles and charging equipment, but it must be installed with the correct box, conductors, breaker protection, and load evaluation.
Why Concealed Wiring Matters

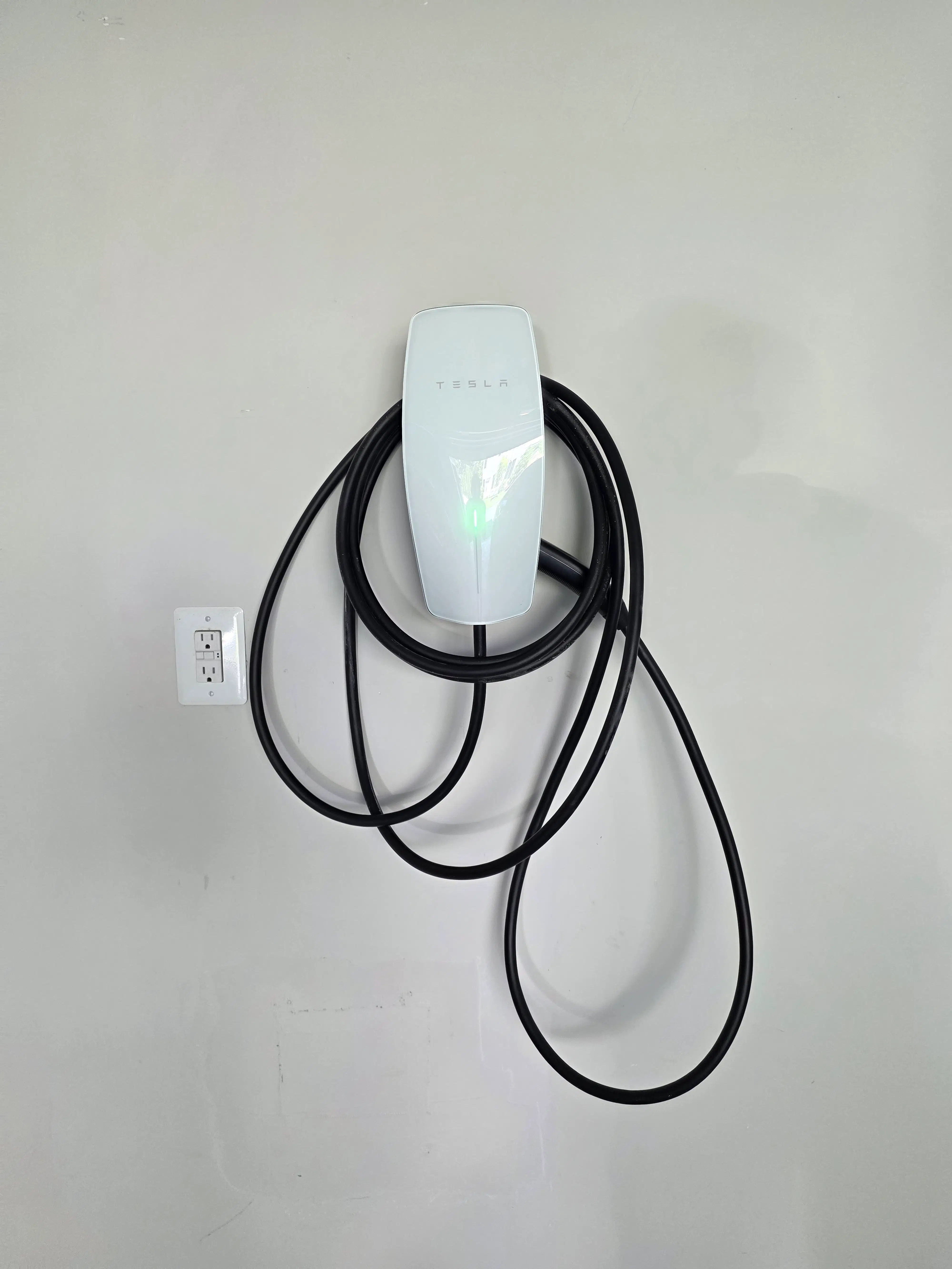

1. It Creates a Built-In Appearance
A wall-mounted EV charger is a visible piece of equipment. The wiring should not compete with it.
When the circuit enters cleanly behind or near the charger, the unit appears integrated with the home. This is especially important in finished garages, where homeowners may have storage cabinets, epoxy flooring, finished drywall, bicycles, tools, and other organized features.
The result is a charging station that looks intentional rather than improvised.
2. It Protects the Electrical Conductors
Garage walls are active workspaces. Cars, ladders, tools, storage bins, bicycles, and lawn equipment can all come into contact with exposed wiring or surface-mounted raceways.
Concealed wiring protects the circuit from common sources of physical damage, including:
- Car doors and mirrors
- Moving storage items
- Wall-mounted equipment
- Accidental impact from tools
- Children or pets accessing exposed components
- Rodents and other pests
- Moisture and temperature changes near exterior walls
The charger’s flexible cable will still be visible because it must reach the vehicle. The difference is that the permanent branch-circuit wiring is protected inside the structure instead of being left exposed across the wall.
3. It Reduces Trip and Snag Hazards
A properly mounted EV charger keeps the charging cable organized and off the floor. Concealed circuit wiring supports that goal by eliminating unnecessary cable or raceway along walking paths.
This is particularly useful in narrow garages, townhome garages, and parking areas where homeowners need to walk between the vehicle, house entry door, storage cabinets, and workspaces.
Clean routing does not replace proper cable management, but it helps create a safer and more functional charging area.
4. It Supports Long-Term Home Appearance
A clean electrical installation photographs well, shows well during a home inspection, and is easier to explain to a future buyer.
Concealed wiring does not guarantee a higher sale price. However, a professionally finished charger is less likely to appear unfinished or require corrective work before listing the home. Buyers increasingly expect modern electrical upgrades to be safe, documented, and visually integrated with the property.
That matters in Northern Virginia, where homeowners may eventually sell or move between communities such as Ashburn, Leesburg, Fairfax, Sterling, and South Riding.
How Concealed Wiring Is Installed
Every property is different. The best wiring route depends on the electrical panel location, charger position, wall construction, attic or crawlspace access, insulation, framing, and the parking arrangement.
A typical concealed-wiring process includes:
Step 1: Evaluate the Electrical System
Before routing cable, the electrician reviews the electrical panel, service capacity, existing loads, available breaker space, grounding and bonding, and the proposed charging rate.
A load calculation helps determine whether the home can support the charger as planned. In some cases, the solution may involve:
- A dedicated circuit
- A lower charging output
- Load management
- A panel upgrade
- A different charger location
- A future-ready electrical plan
Step 2: Plan the Route
The electrician identifies the most direct practical route from the panel to the charger. Attics, basements, crawlspaces, unfinished utility areas, and accessible framing cavities can make concealed routing easier.
The goal is not to eliminate every opening at any cost. The goal is to choose a safe, code-compliant route that minimizes unnecessary damage.
Step 3: Fish the Conductors Through Finished Areas
When walls are finished, the electrician may fish the conductors through the wall cavity or use access points at carefully selected locations. The route must avoid plumbing, HVAC equipment, structural framing concerns, and existing electrical systems.
Where the wiring passes through framing, it must be installed and protected correctly. The circuit also needs appropriate conductor sizing, breaker protection, grounding, and termination torque.
Step 4: Complete the Charger Connection
The charger is securely mounted at a practical height and location. For hardwired equipment, the branch circuit is connected according to the manufacturer’s instructions. The charger is then configured for the available circuit and vehicle requirements.
Auto Charge Pros commonly installs Tesla Wall Connectors, Tesla Universal Wall Connectors, Emporia chargers, ChargePoint units, Wallbox equipment, and other Level 2 charging systems for Tesla, Rivian, Ford, BMW, Hyundai, Kia, Chevrolet, and Mercedes-Benz vehicles.
Step 5: Test, Inspect, Patch, and Clean Up
Required permits and inspections are handled according to the project and local jurisdiction. After the electrical work is approved, included drywall patching and restoration can be completed.
Access holes may require joint compound, sanding, texture matching, primer, and paint. Exact paint matching can depend on whether the homeowner has leftover paint or the existing finish has changed over time. The important point is that drywall impact should be discussed before work begins, not discovered after the electrician leaves.
Concealed Wiring vs. Surface-Mounted Conduit
Concealed wiring is not always the correct choice. Surface-mounted conduit can be the safer and more practical method in many installations.
Concealed wiring is often practical when:
- The garage has finished drywall
- The panel and charger are on accessible sides of the same structure
- Attic, basement, or crawlspace access is available
- The route can be completed without disturbing structural components
- The homeowner wants a built-in appearance
Surface conduit is often appropriate when:
- The garage has unfinished block or concrete walls
- The wiring runs along an exterior wall
- The installation is outdoors
- The charger is in a detached garage
- The conductors require additional mechanical protection
- Future access is important
- Opening finished walls would create unnecessary damage
A visible conduit installation can be fully code-compliant and professionally finished. Conduit is not automatically a shortcut, and concealed wiring is not automatically better. The correct choice depends on the building, route, equipment, inspection requirements, and long-term use of the space.
Why Some Installers Use Surface Conduit Everywhere
Surface conduit can be faster to install because the electrician does not need to fish wiring through finished walls or coordinate drywall restoration. It may also reduce the number of unknowns on a complex project.
That approach can be reasonable when conditions require it. The trade-off is primarily visual. A long run of conduit may be noticeable across a finished garage, especially when the charger is mounted far from the electrical panel.
At Auto Charge Pros, we explain the available options instead of treating every home the same. If surface conduit is the safest method, we install it neatly. If concealed wiring is practical, we consider the route and drywall impact before recommending it.
The Auto Charge Pros Approach
Our work begins with the electrical system and ends with the condition of the customer’s home.
For an EV charger installation in Northern Virginia, our process may include:
- Reviewing the charger and vehicle requirements
- Performing a load calculation
- Planning the wiring route
- Recommending hardwired charging when practical
- Protecting the surrounding garage and finished surfaces
- Creating only the access openings needed
- Handling permits and inspections when required
- Testing the circuit and charger
- Organizing the panel connections
- Explaining any drywall patching or painting requirements
- Cleaning the work area before leaving
This standard applies whether we are installing a charger in a finished garage in Chantilly, a townhome in Centreville, a detached garage in Gainesville, or an outdoor charging station in Haymarket, Manassas, or Warrenton.
We serve homeowners throughout Loudoun, Fairfax, Prince William, and Fauquier counties, including Ashburn, Leesburg, Aldie, Sterling, South Riding, Fairfax, and surrounding communities.
Questions to Ask Your EV Charger Installer
Before approving a quote, ask:
- Can you conceal the EV charger wiring in my home?
- What wiring method do you recommend, and why?
- How many access holes do you expect to make?
- Is drywall patching included in the estimate?
- Does the quote include permits and inspections?
- Will the charger be hardwired or connected to a NEMA 14-50 outlet?
- Has a load calculation been completed?
- What charging output will the circuit support?
- How will the charger be positioned for my vehicle and parking direction?
- What happens if the planned route is not accessible?
Clear answers to these questions help prevent surprises and make it easier to compare installation proposals accurately.
Frequently Asked Questions
Is concealed wiring safer than exposed conduit?
Both methods can be safe and code-compliant when installed correctly. Concealed wiring protects conductors from common garage impacts and creates a cleaner appearance. Surface conduit may be the better choice where additional mechanical protection or future access is needed.
Will concealed wiring damage my drywall?
Some finished-wall installations require small access openings. The number and location depend on the route and building construction. A skilled electrician plans the work to minimize unnecessary openings and should explain drywall restoration before installation begins.
Can every EV charger be installed with concealed wiring?
No. Concrete walls, exterior runs, detached garages, long distances, and limited access may make surface conduit more practical. The charger location and electrical panel location also affect the available options.
Should I hardwire my Level 2 charger?
Hardwiring is generally preferred for higher-powered residential charging when practical. It provides a permanent connection and avoids relying on a high-amperage receptacle for daily charging. A NEMA 14-50 installation may still be suitable when the equipment and home design support it.
Do I need a permit for an EV charger installation?
Permit and inspection requirements vary by jurisdiction and project. Auto Charge Pros reviews the local requirements, prepares the necessary electrical information, and coordinates the process when required.
